| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | PN10/16 | Body Material: | GG25 |
|---|
DIN PN10/16 GG25 metal seal globe valve
We are a factory of manufacture different types of valves, including gate valves, ball valves, check valves, globe valves and foot valves.
If you'd like to know more our products, pls feel free to contact Sophia via email:sophiavalve@hbpvpt.com
Specifications
1.Production Size:1/2"~10".DN15~DN250
2.Pressure:PN10/16
DIN Globe Valve standard:
1.Design Standard:DIN 3356
2.Face to Face:DIN 3202 F1
3.Flange Standard:DIN 2533 PN16
4.Testing Standard:ISO 5208
DIN Globe Valve Material of parts:
1.Body:GG25/GGG50
2.Bonnet:GG25/GGG50
3.Stem:CS/2Cr13,SS304,SS316,Carbon Steel
4.Stem Nut:brass,Ductile iron
5.Disc:C.S/GG25
6.Seat:ASTM B62 C83600,2Cr13,Brass
7.Hand wheel:ASTM A536 65-45-12
8.Packing:Graphite

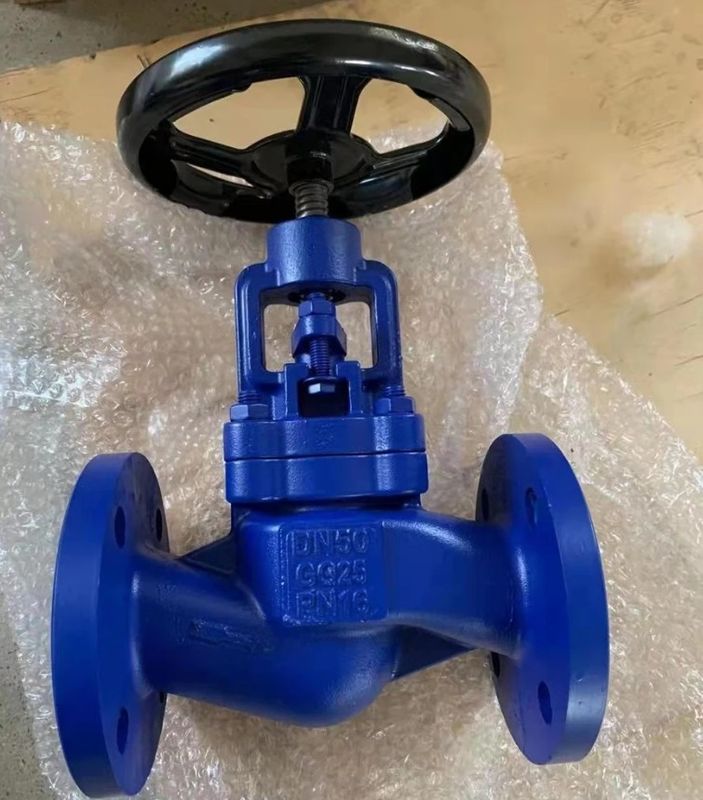

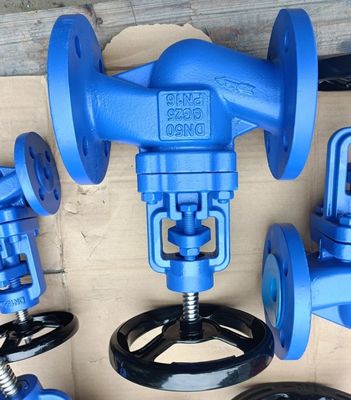

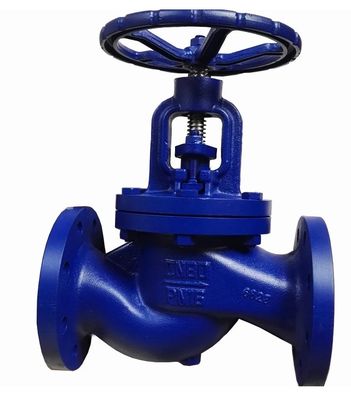

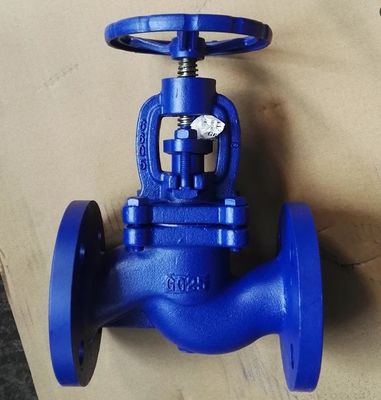

Product show
Contact Person: Ms. Sophia Liu
Tel: +86 15931062270
