| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |

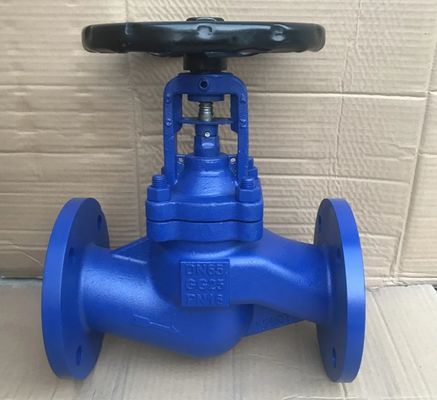

DIN bellows flanged cast iron globe valve
Specifications
1.Production Size: 1/2"~10".DN15~DN250.
2.Pressure: PN16.
Standard:
1.Design Standard: DIN 3356.
2.Face to Face: DIN 3202 F1.
3.Flange Standard: DIN 2533 PN16.
4.Testing Standard: ISO 5208.
Material of Parts:
1.Body: GS-CS25.
2.Bonnet: GS-CS25.
3.Stem: 2Cr13, SS304, SS316, carbon steel.
4.Stem Nut: brass, ductile iron.
5.Bellows: SS304.
6.Disc: GS-CS25.
7.Seat: ASTM B62 C83600, 2Cr13, Brass.
8.Hand wheel: ASTM A536 65-45-12.
9.Packing: Graphite.

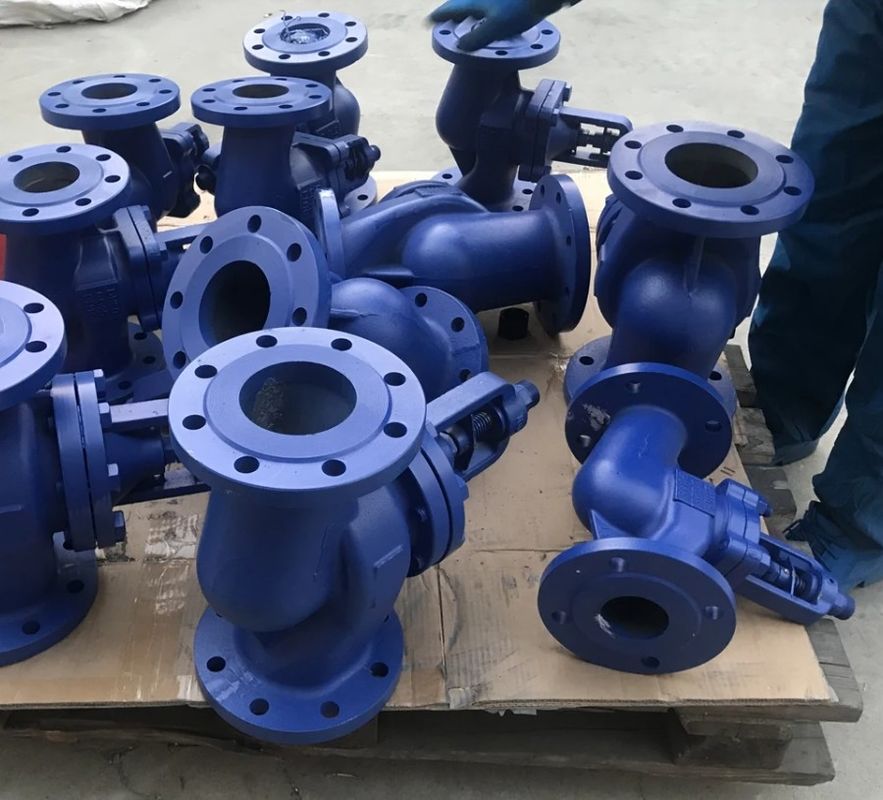

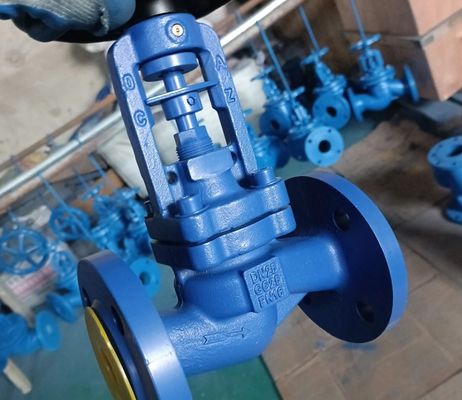

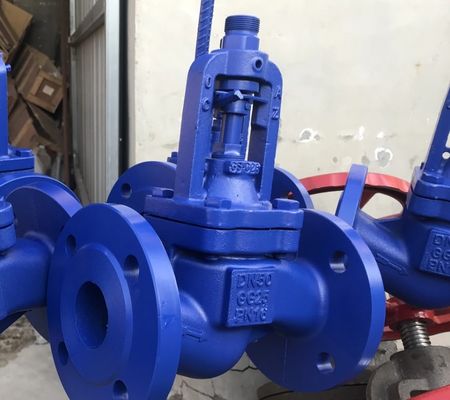

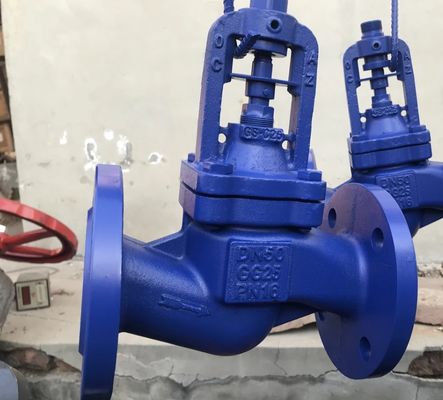

Product show
