| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Size: | DN100 | Pressure: | PN16 |
|---|---|---|---|
| Body: | GGG50 |

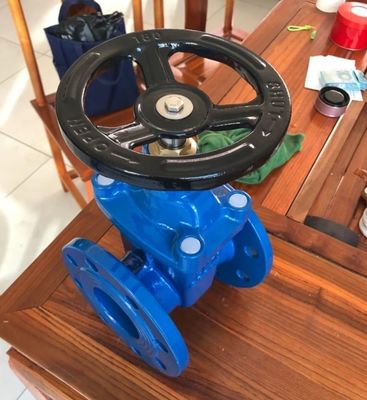

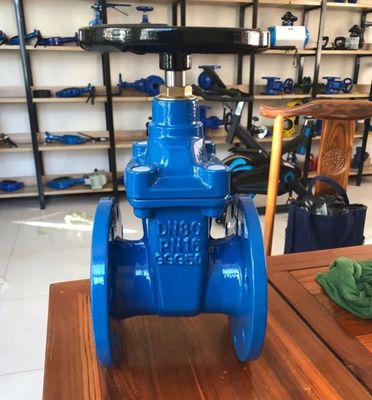

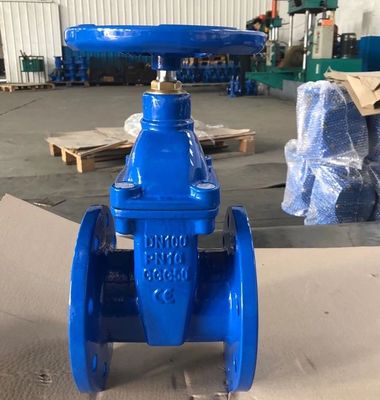

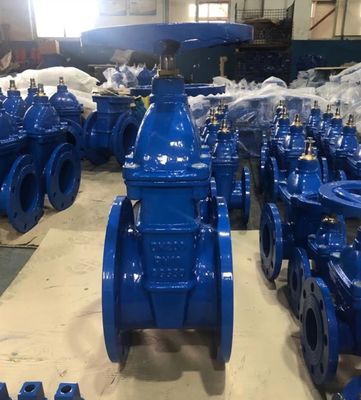

DN100 PN16 GGG50 non-rising gate valve
Specifications
1.Production Size:2”-40” DN50-DN1000mm
2.Pressure range:PN10,PN16
3.Design Standard:BS5163,BS5150
4.Face to Face:BS5150
5.Flange Standard:EN 1092-2
6.Testing Standard:ISO 5208
main material of parts:
1.Body:EN-GJS-500-7
2.Bonnet:EN-GJS-500-7
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:EN-GJS-500-7
6.Seat:NBR,EPDM,PTFE
7.Bonnet Gasket:Graphite
8.Packing:NBR,EPDM
9.Hand wheel:EN-GJS-500-7

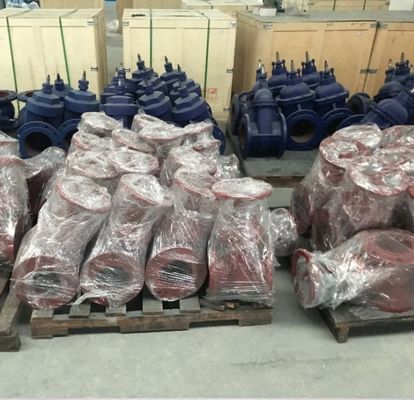

Product show
