| Place of Origin: | China |
| Brand Name: | PVPT |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | EXW FOB CFR CIF |
| Packaging Details: | wooden case, pallet or as per customer request |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Pressure: | PN10/PN16 |
|---|
PN10/PN16 DIN metal seal check valve
Specifications
1.Production Size:2”-24” DN50-DN600mm
2.Pressure range:PN10,PN16
3.Design Standard:DIN
4.Face to Face:DIN
5.Flange Standard:EN 1092-2
6.Testing Standard:ISO 5208
Check Valve main material of parts:
1.Body:EN-GJL-250/GGG50
2.Bonnet:EN-GJL-250/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:SS201/brass
5.Disc:EN-GJL-250/GGG50
6.Seat:Bronze,Brass
7.Bonnet Gasket:Graphite
8.Hanger:EN-GJS-5007
9.Hanger pin:Stainless Steel

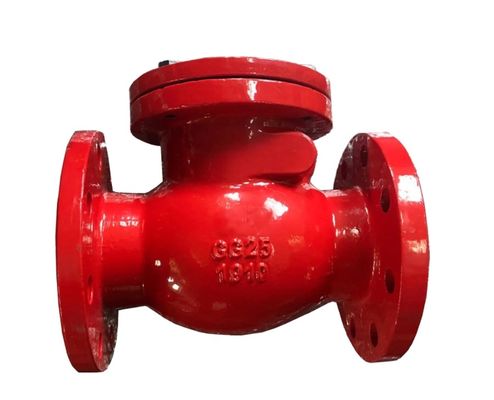

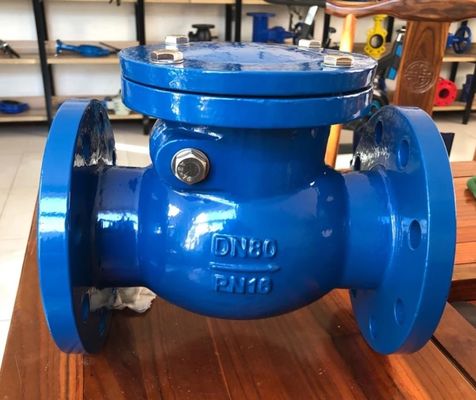

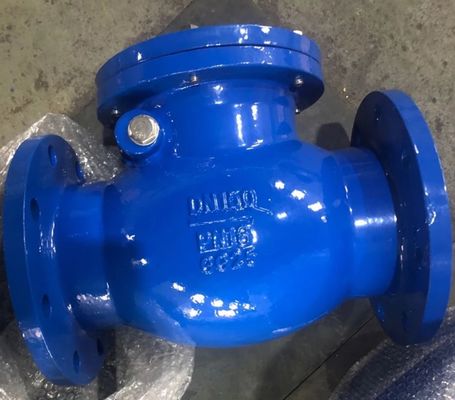

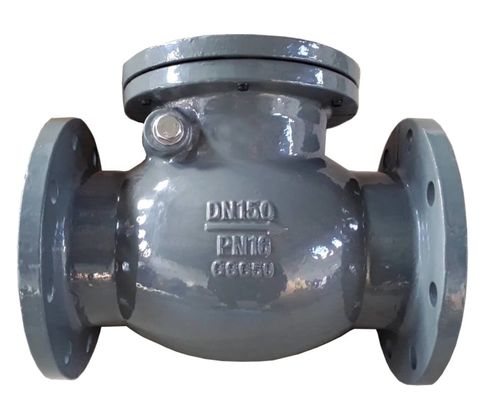

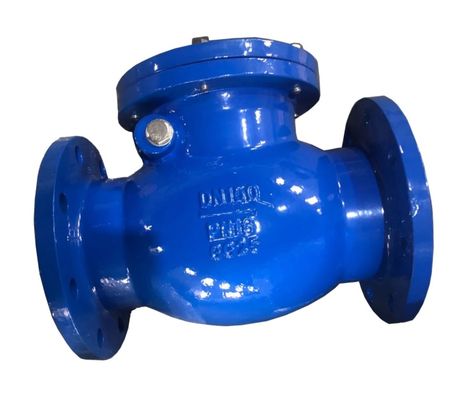

Product show
